252P Series

A Powerful + Ultra Temperature industrial 3D printer
for your additive manufacturing needs

REQUEST OFFER

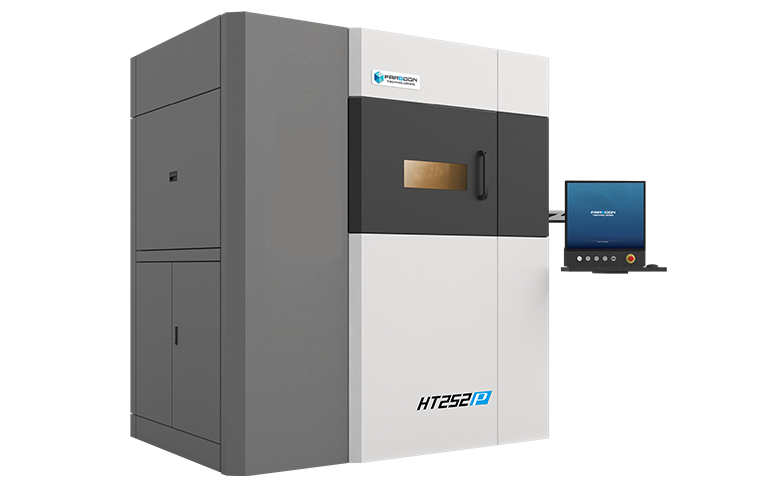

Introducing 252P Series

The 252P series offers a compact build envelope size, robust high-temperature capabilities combined with truly open parameter strategy making it the best flexible machine solution for SLS material development and small batch economy production.

252P Series

High Temperature

Versatile Applications

Comprehensive Software

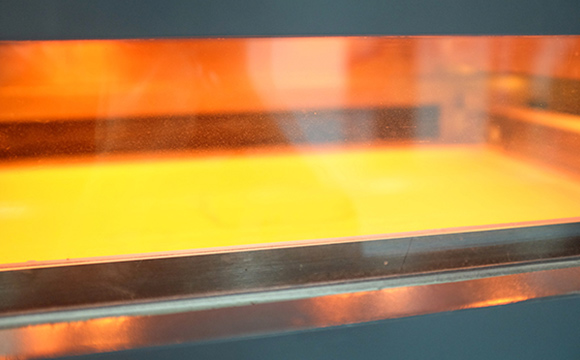

High Temperature

The 252P Series offers three configurations capable of achieving chamber temperatures from up to 220°C (HT) to 280°C (ST) to 340°C (UT). Enhanced temperature shielding, laser power and thermal controls enable the 252P Series to process high-performance materials such as PA6, PPS, PAEK, PI, PTFE for direct-use applications.

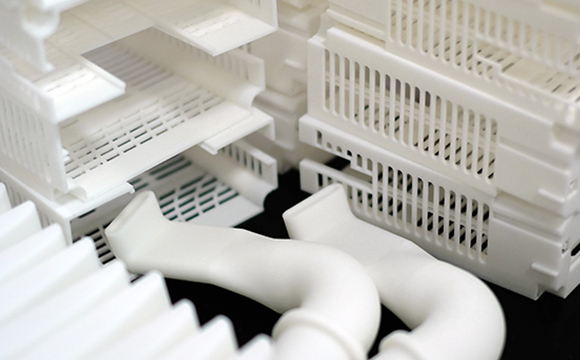

Versatile Applications

With the 252P series, Farsoon is able to support a wide range of additive solutions in various industries including scientific research, automotive, medical, and aerospace. Like all other Farsoon systems the 252P series is open platform allowing for unprecedented freedom in manufacturing and material development.

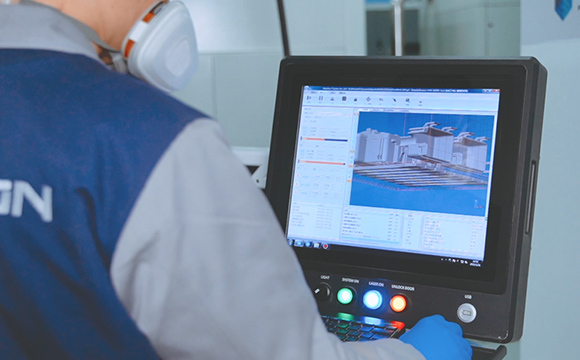

Comprehensive Software

The 252P series like all Farsoon systems is offered with a full set of self-developed Farsoon software. This powerful set of tools enables a variety of functions that range from build preparation to machine control and operations while remaining completely compatible with third party software and materials.

DOWNLOAD BROCHURE

Industrial Applications with 252P Series

With truly open systems and profound industry know-how in SLS material engineering, Farsoon has established long-term partnerships with many industry-leading material manufacturers. By working closely together, we test 3rd party materials in the development process, provide customers verified material + AM system solution to support new applications with new polymer materials.

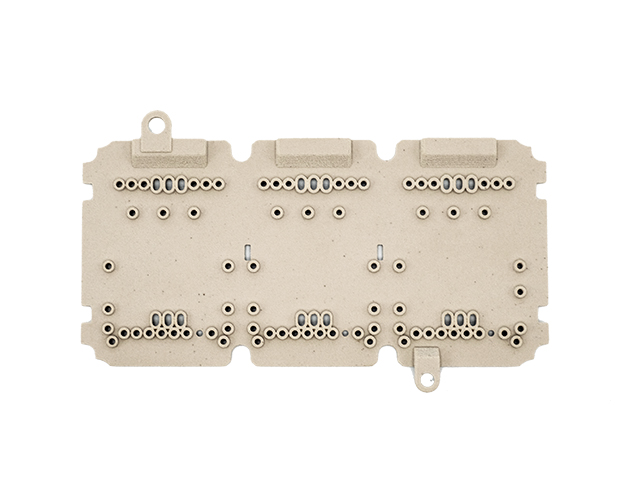

HPD Package Module Cover

Machine: UT252P
Material: PAEK family

The main function of the HPD module is to control speed and torque, enabling vehicle acceleration, deceleration, and automation. The 3D-printed PAEK cover plate maintains excellent and stable performance even under high-temperature, high-frequency testing. It can withstand temperatures up to 175ºC and remains stable for up to 1.5 hours at 200ºC without deformation. In terms of mechanical properties, it meets strength requirements of over 30 MPa and modulus above 1500 MPa.

VIEW AUTOMOTIVE INDUSTRY

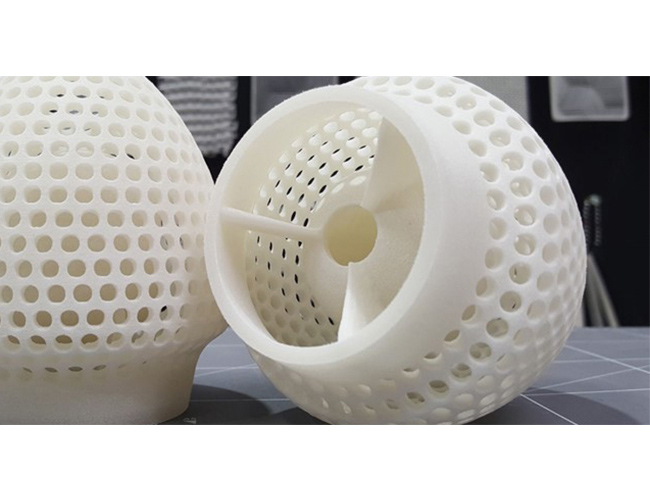

Water Pump Strainers

Machine: ST252P
Material: ACTIVE Material from FABULOUS
Certification: ACS, for potable water applications

RICOH 3D printing service, FARSOON customer, based in UK, is using ACTIVE material for manufacturing water pump strainers. ACTIVE is a new material specific to the Water industry: it has been certified (ACS certification) for potable water applications and plastic parts in contact with drinkable water, such as water pumps, hydraulic systems, data sensors, and all permanent water-immersed parts.

VIEW CASE STUDY

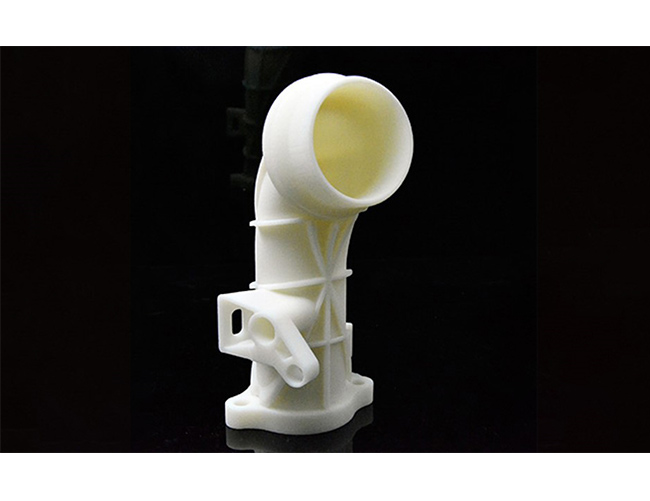

Adaptor Pipe

Machine: HT252P
Material: PA6
Build Time: 10 hours

In collaboration with BASF and PATAC, this new generation of adaptor pipe prototype is manufactured with high-temperature resistant PA6 material on Farsoon’s HT252P system. Thanks to the design and manufacturing flexibility brought by AM, PATAC engineers are able to achieve functional integration by combining multiple parts into one, to better withstand the high-frequency vibration load and burst pressure under the automotive engine operation.

VIEW AUTOMOTIVE INDUSTRY

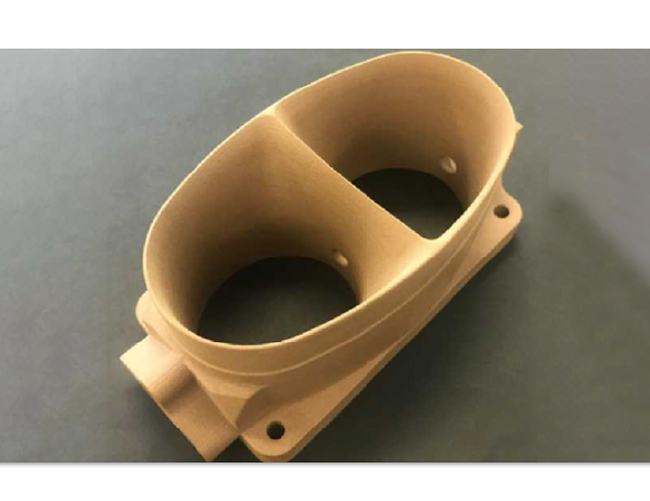

Railway Outlet Duct

Machine: ST252P
Material: PPS

Approved by Japan Railway Rolling Stock & Machinery Association, this Railway outlet duct application is manufactured with high-temperature resistant PPS material on Farsoon’s ST252P system, featuring excellent flame retardant, electrical insulation, corrosion resistance and size stability.

VIEW AUTOMOTIVE INDUSTRY

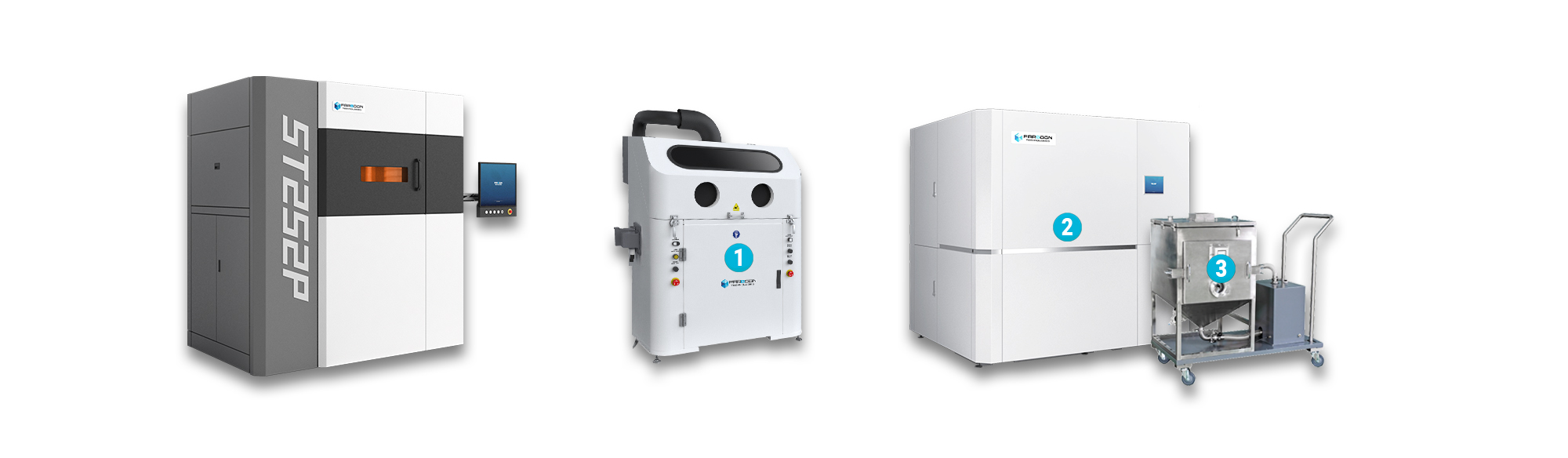

Discover 252P Series System

252P Series Technical Data

Technical DataUT252P
External Dimensions （L×W×H）1735×1300×2000 mm ( 68.3×51.2×78.7 in )
Build Cylinder Size1（L×W×H）250×250×320 mm ( 9.8×9.8×12.6 in )
Net WeightApprox. 2500 kg (5511.6 lb)
Laser TypeCO2 laser, 1×100W
ScannerHigh-precision galvo system
Scanning SpeedMax.10 m/s ( 32.8 ft/s )
Max. Chamber Temperature340°C ( 644℉ )
Technical DataST252P
External Dimensions （L×W×H）1735×1225×1975 mm ( 68.3×48.2×77.8 in )
Build Cylinder Size1（L×W×H）250×250×320 mm ( 9.8×9.8×12.6 in )
Net WeightApprox. 1700KG ( 3747.9 lb )
Laser TypeCO2 laser, 1×100W
ScannerHigh-precision galvo system
Scanning SpeedMax.10 m/s ( 32.8 ft/s )
Max. Chamber Temperature280°C ( 536℉ )
Technical DataHT252P
External Dimensions （L×W×H）1735×1205×1975 mm ( 68.3×47.4×77.8 in )
Build Cylinder Size1（L×W×H）250×250×320 mm ( 9.8×9.8×12.6 in )
Net WeightApprox. 1700KG ( 3747.9 lb )
Laser TypeCO2 laser, 1×55W
ScannerHigh-precision galvo system
Scanning SpeedMax.10 m/s ( 32.8 ft/s )
Max. Chamber Temperature220°C ( 428℉ )

1 The functional build volume depends on the parts/materials
