FLIGHT® HT1001Pa CAMS System

×4 Laser | ×3 Power | ×3 Volume compared to standard SLS
Ultimate System for Productivity

REQUEST OFFER

Quad-Fiber Laser For Maximum Productivity

The innovative application of high-speed FLIGHT® Technology on HT1001P CAMS platform boosts industry-leading productivity for large-sized parts. Featuring expanded build cylinder measuring 1000mm×500mm×450mm and powerful dual or quad 300-watt fiber lasers, the Flight® HT1001P creates two or four ultra-fine laser spots with fast scanning speed of up to 20m/s (66ft/s) for each; the continuous batch production capability significantly improves machine uptime and offers up to 10 times throughput yield per floor area compared to standard SLS system within the same time frame.

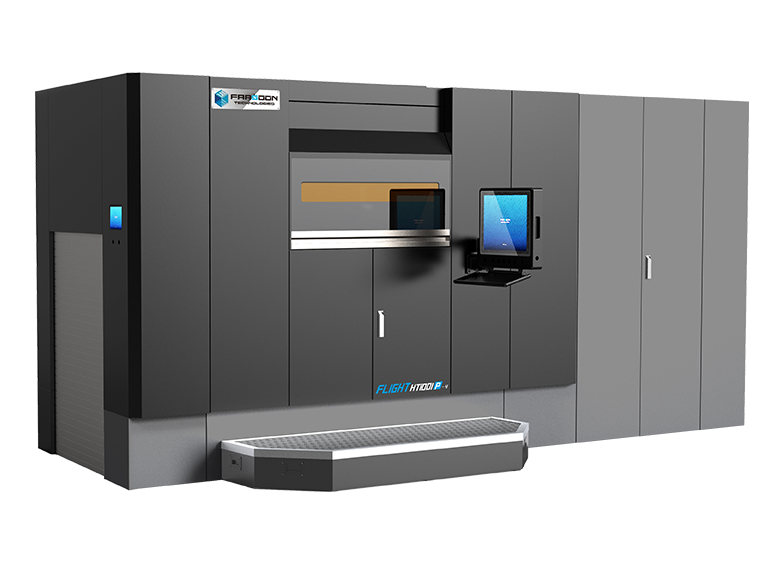

FLIGHT® HT1001P

Open & Modular

Powder Management

Quality Engineering Parts

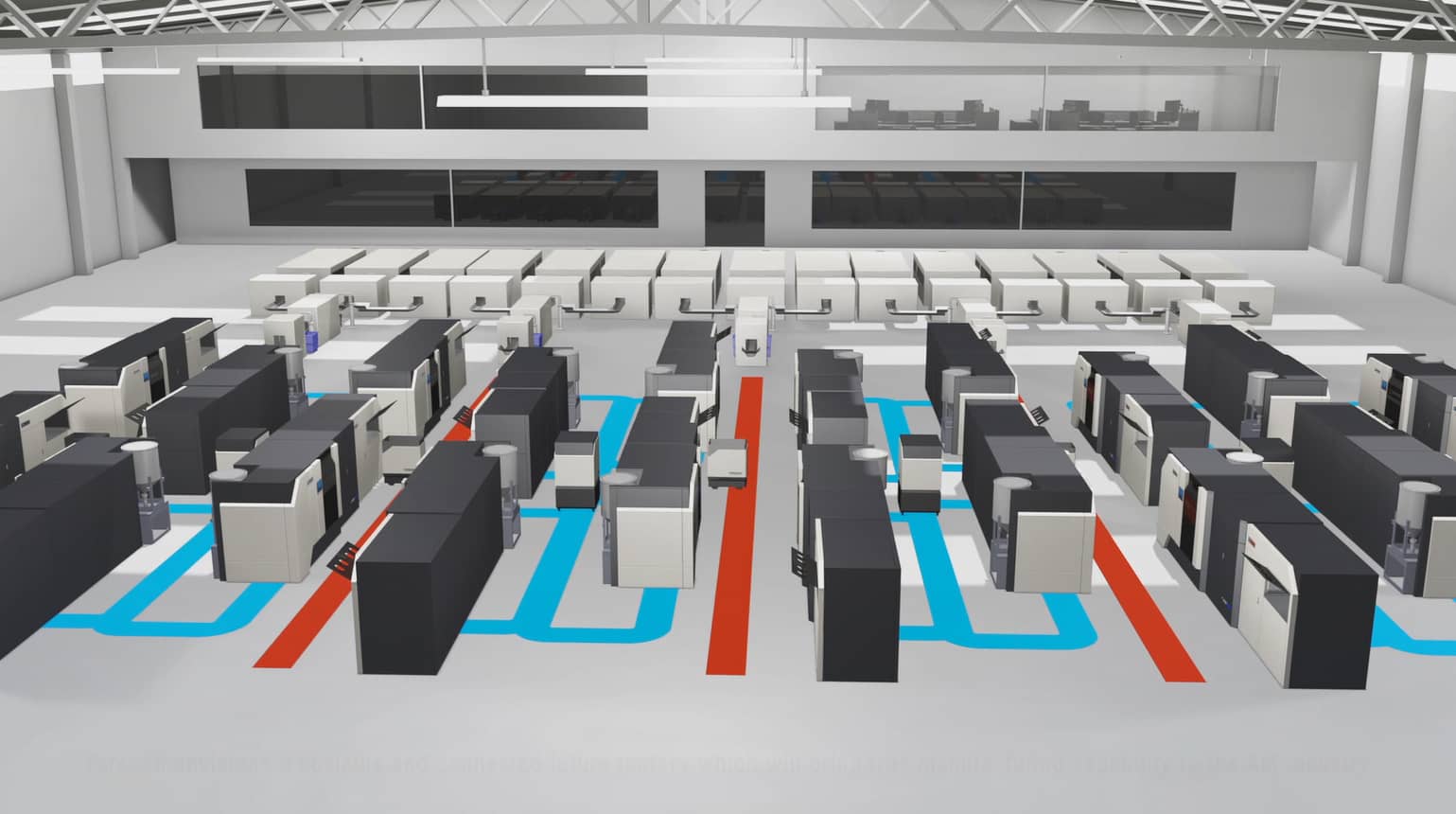

Open & Modular

The FLIGHT® HT1001P like all Farsoon systems is fully open. This means Farsoon system is an open material model. Besides a list of standard material config files ready for serial production, the users have full access to a wide range of key parameters for tuning customized processing parameters from third party engineering materials. In addition, the FLIGHT® HT1001P’s modular design allows for the easy addition of future stations for pre and post processing as well as integration into existing production lines.

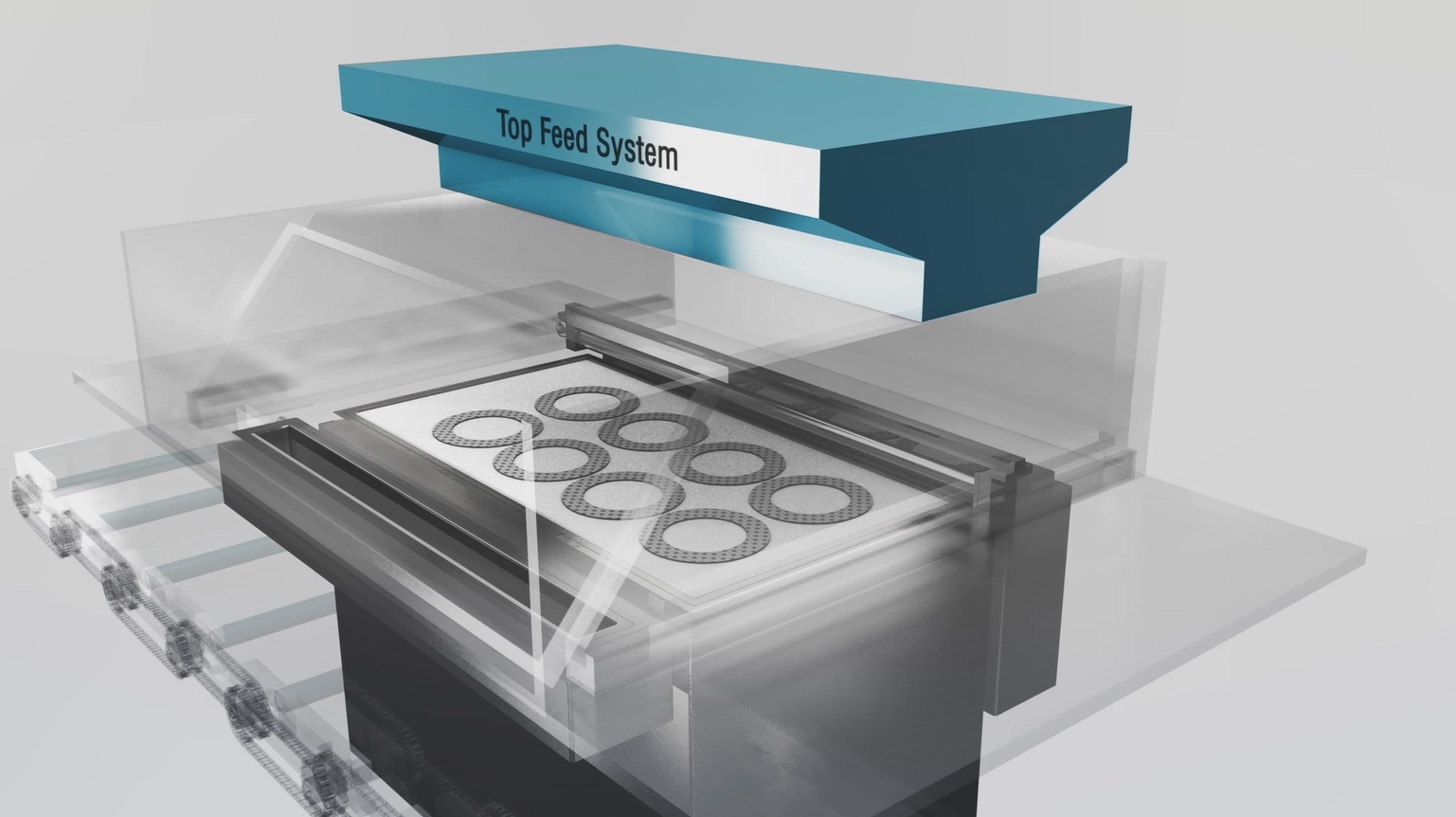

Powder Management

Designed for industrial-scale manufacturing, the FLIGHT® HT1001P system is featured with a comprehensive, closed-loop powder handling system with increased level automation and minimal operator interaction with the powder. Highly efficient top-feeding powder delivery, robust roller re-coating system and fully enclosed de-powdering station enables streamlined material workflow with improved productivity, safety and operation ease.

Quality Engineering Parts

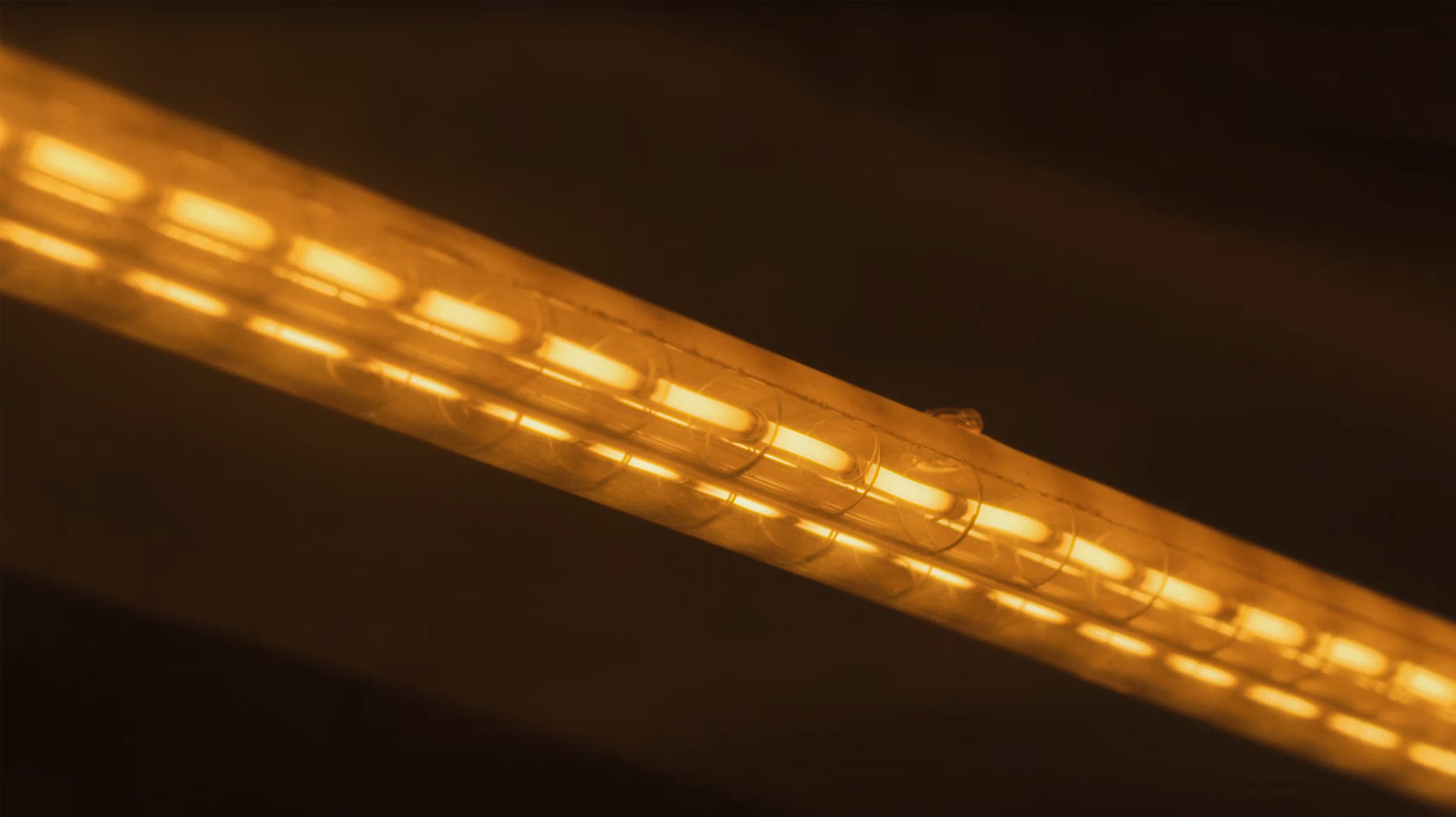

The FLIGHT® HT1001P is capable of achieving chamber temperatures of up to 220℃ to process high-temperature engineering materials such as PA6, PA66 for direct-use end parts. With patented multi-zone heater & intelligent temperature control system, the FLIGHT® HT1001P can achieve a uniform thermal distribution throughout the platform ensuring the consistent mechanical properties and surface quality of the build parts.

DOWNLOAD BROCHURE

Industrial Applications with FLIGHT® HT1001P

With the industrial-scale build envelope and enhanced sintering speed, FLIGHT® HT1001P offers the next level plastic AM production: large-volume industrial end-use application parts can be manufactured in a much faster turn-over rates and reduced cost, for a significant higher ROI.

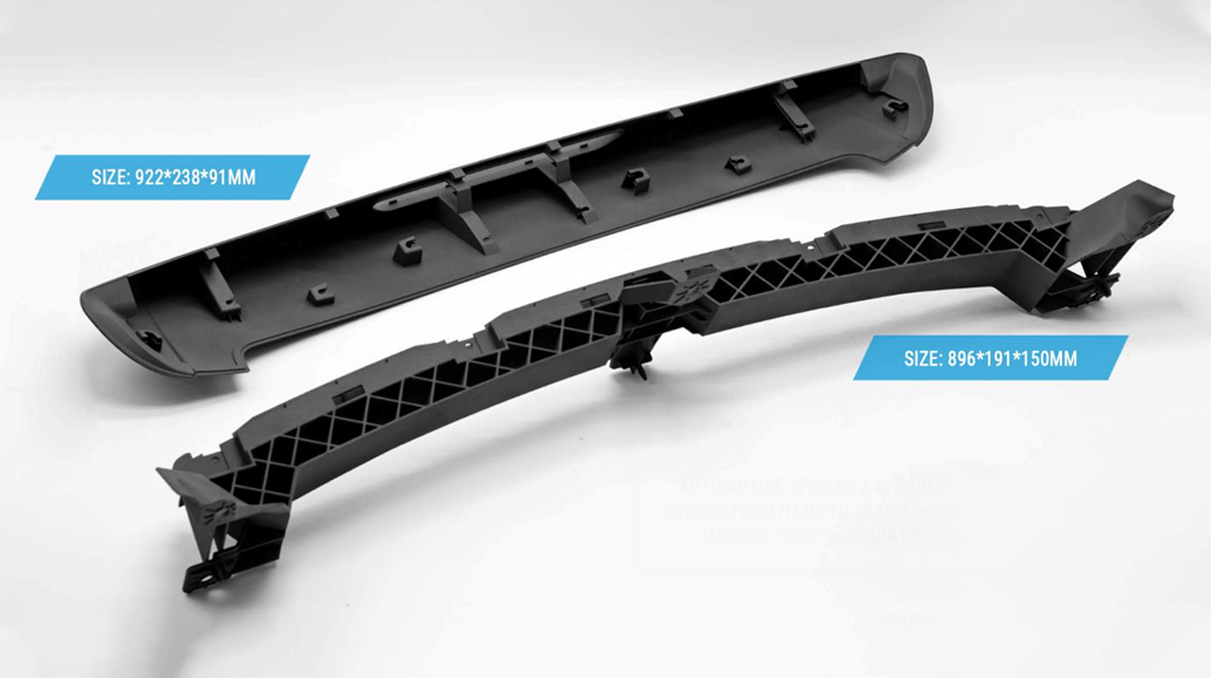

Automotive Spoiler Assembly

Machine: FLIGHT® HT1001P-4
Material: FS3201PA-F (PA12)
Size: 896 x 191 x 150 mm and 922 x 238 x 91 mm

In collaboration with SAPW Automotive, this spoiler assembly designed for the new generation electric car features over sized length, multi-directional connections and structure features. Additively produced on Farsoon FLIGHT® HT1001P-4, this functional prototype can achieve optimal size accuracy for excellent matching, accelerated production cycle and strong mechanical properties; making it the perfect option for design verification during the vehicle development iteration.

VIEW AUTOMOTIVE INDUSTRY

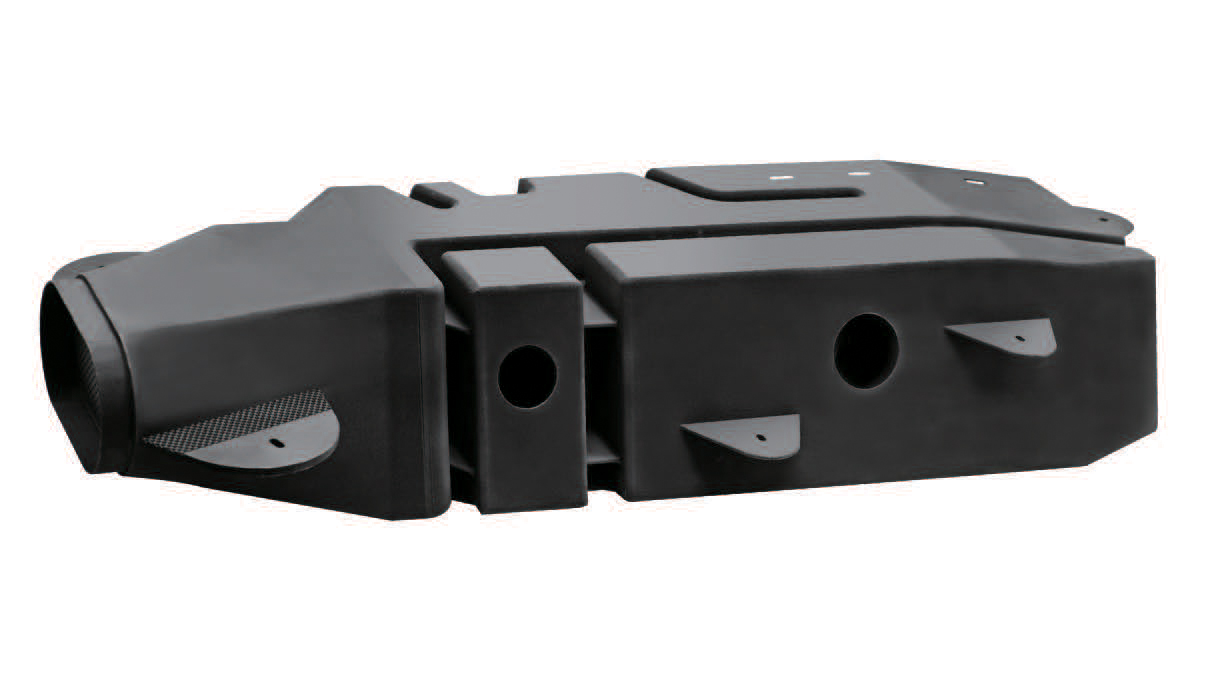

Truck Air Inlet System Component

Machine: FLIGHT® HT1001P-4
Material: FS3401GB-F (PA12 with Glass Bead filled)
Size: 901×155×372mm
Build Time: 10 Hours

The Truck Air Inlet System Component is designed for functional verification and fabricated in a single piece in 10 hours using Farsoon’s FLIGHT® HT1001P-4. The produced part showcases high mechanical properties,size-precision at a significant reduced cost compared to traditional manufacturing.

VIEW AUTOMOTIVE INDUSTRY

Discover FLIGHT® HT1001P System

FLIGHT® HT1001P Technical Data

Technical DataFLIGHT® HT1001P-2
External Dimensions （L×W×H） 5820×2375×2185 (Full Module) (229.1×93.5×86.0 in)
2960×2375×2185 mm (Build Station only) ( 116.5×93.5×86.0 in )
Build Cylinder Size1（L×W×H）1000×500×450 mm ( 39.4×19.7×17.7 in )
Net WeightApprox. 5000 KG ( 11023.1 lb ) (Full Module) / 3500KG (7716.2 lb) (Build Station only)
Laser Type Fiber Laser, 2×300W
ScannerHigh-precision three-axis galvo system
Scanning SpeedMax. 20 m/s (66 ft/s)
Max. Chamber Temperature220°C ( 428℉ )
Technical DataFLIGHT® HT1001P-4
External Dimensions （L×W×H） 5820×2375×2185 (Full Module) (229.1×93.5×86.0 in)
2960×2375×2185 mm (Build Station only) ( 116.5×93.5×86.0 in )
Build Cylinder Size1（L×W×H）1000×500×450 mm ( 39.4×19.7×17.7 in )
Net WeightApprox. 5000 KG ( 11023.1 lb ) (Full Module) / 3500KG (7716.2 lb) (Build Station only)
Laser Type Fiber Laser, 4×300W
ScannerHigh-precision three-axis galvo system
Scanning SpeedMax. 20 m/s (66 ft/s)
Max. Chamber Temperature220°C ( 428℉ )

1 The functional build volume depends on the parts/materials.
