FS721M

Large-frame Metal System boosts
optimal productivity and great ROI

REQUEST OFFER

Introducing FS721M Production Platform

Addressing the challenges in metal manufacturing focusing around size constraints, process control, cost-efficiency and production scalability, Farsoon developed the FS721M with an industry-leading build volume of 720 x 420 x 420 mm and equipped with 2 or 4 lasers with 500W each. The FS721M 8-laser configuration is currently under Beta status. It offers many unique capabilities featuring productivity, quality, operational ease and best cost-to-performance.

FS721M Platform

Production Ready

Precision + Quality

Ease Of Use

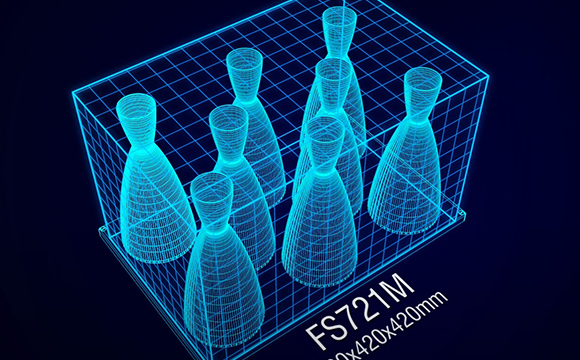

Production Ready

The FS721M was from the very beginning designed for productivity. It’s large build volume of 720 x 420 x 420mm is one of the largest currently available in the metal laser powder bed fusion landscape. The rectangular build volume is optimized for the production of large parts which favor one axis, this is especially valuable in industries such as automotive and tooling. Also, the rectangular build chamber is well suited for multi-laser configuration to boost industry-leading build rate.

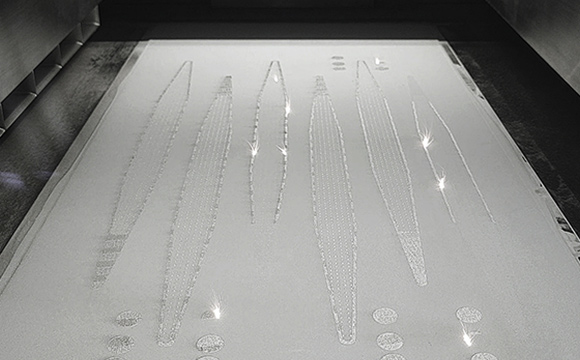

Precision + Quality

Farsoon's advanced software control and precise scanning system offer uniform performance in multi-laser overlap zones. Continuous powder feeding, optimized gas flow and integrated filter module enable the uniform melting process of metal material. Powerful build process controls & real-time re-coating monitoring ensure the optimal industrial build quality.

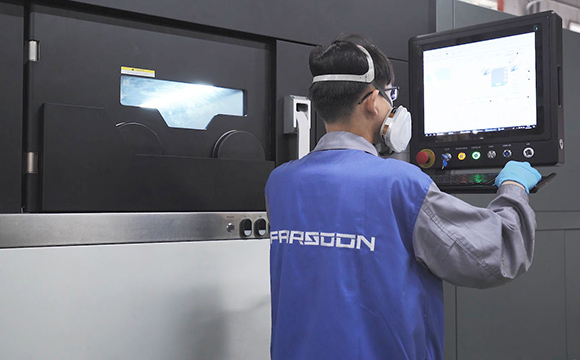

Ease Of Use

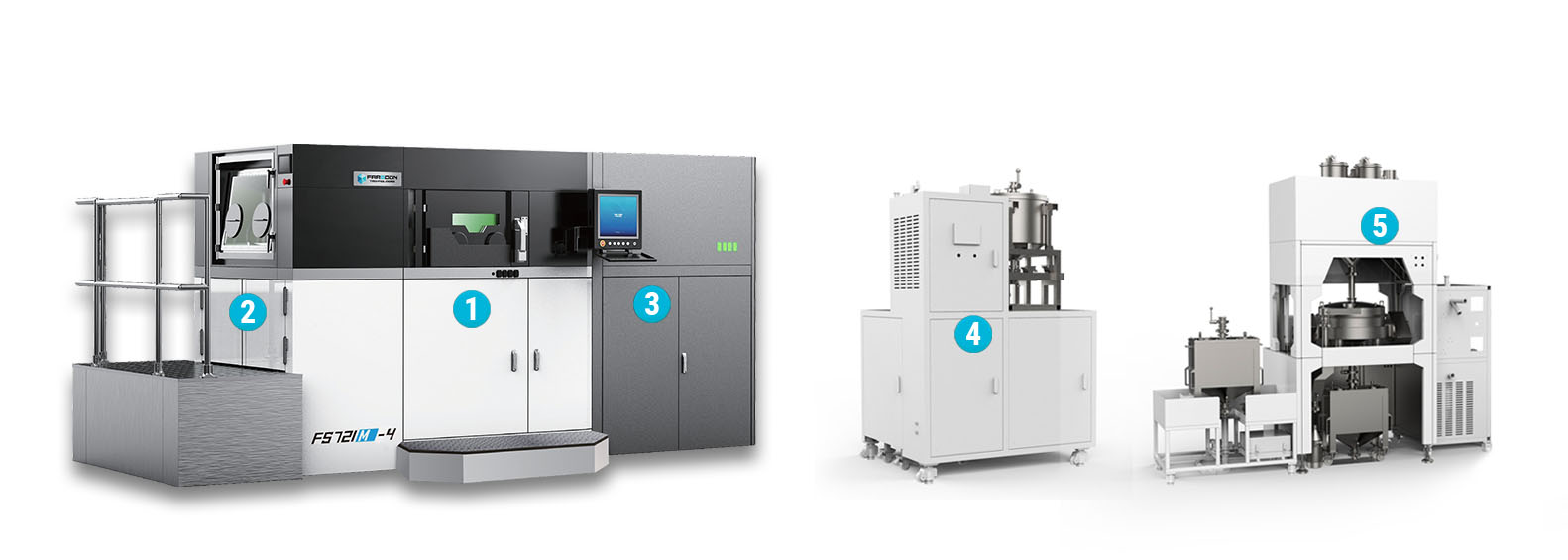

The FS721M's integrated conveyer system, breakout station and advanced powder handling system allow for an efficient and safe build cylinder transportation and fully-sealed de-powdering process. Features such as advanced calibration and electric leveling offer streamlined workflow. The FS721M is a truly open platform offers the user flexibility to tailor processing parameters for industrial applications and cost-competitive metal additive manufacturing.

DOWNLOAD BROCHURE

Industrial Applications with FS721M

Featuring a unique rectangular industrial sized build platform, FS721M are well suited for large-scaled application favored one axis, or high-volume series production targeted applications aiming to open up new potential opportunities in molds & tooling, automotive and large-format industrial manufacturing.

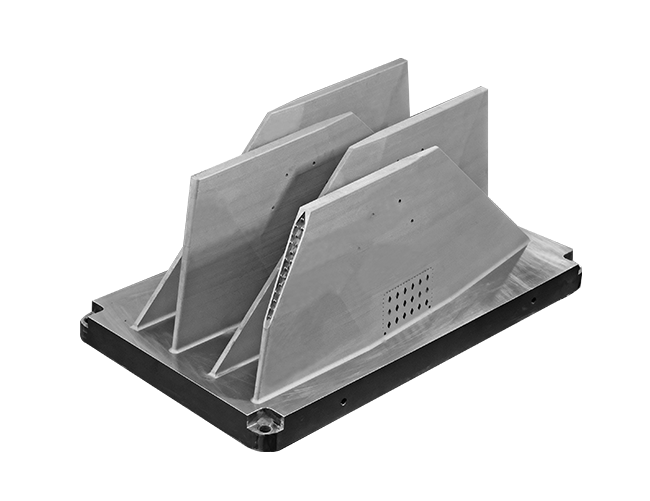

Wing Rudder with Light-weight Structure

Machine: FS721M-8
Material: Inconel 718
Size: 665 x 55 x 252 (H) mm each
Layer thickness: 0.03 mm
Build Time: 130 Hours

This wing rudder is purpose-designed and functional-prototyped for aerospace industry. Featured with advanced light-weighting design including internal lattice supports and integrated structure, this part has achieved significant weight reduction over 60%. During the functional validation test it shows a comprehensive improvement on the mechanical performance. Thanks to additive technology the production of the part allows for 50% reduced lead time and 30% saving of manufacturing cost.

VIEW AEROSPACE INDUSTRY

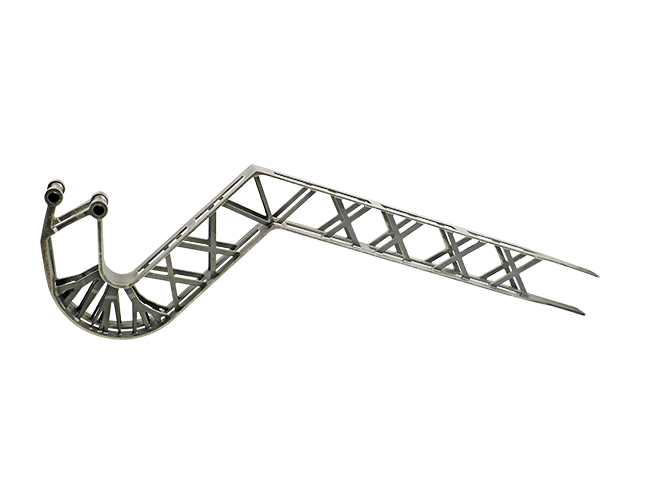

Rocker Arm with Topographic Design

Machine: FS721M-2
Material: Stainless Steel 316L
Size: 665 x 60 x 240 (H) mm

This aircraft rocker arm is designed and build for functional prototyping. Thanks to the advanced additive technology the rocker beam allows for structurally design optimization targeting light-weighting. Compared to traditionally manufactured part, it is additively manufactured in one-piece on FS721M-2 system; and achieves a significant weight reduction of 35% while still meets required mechanical strength performance.

VIEW AEROSPACE INDUSTRY

Discover FS721M System

FS721M Technical Data

Technical DataFS721M-2
External Dimensions （L×W×H）6610×1830×2500mm ( 260.2×72.0×98.4 in )
Build Cylinder Size1（L×W×H）720×420×420 mm ( 28.3×16.5×16.5 in ) (not including build plate thickness)
Net WeightApprox. 5000 kg ( 11023.1 lb )
Laser TypeDual Lasers, 2×500W
ScannerF theta lenses or dynamic focusing system
Scanning SpeedMax. 10.0 m/s ( 32.8 ft/s )
Technical DataFS721M-4
External Dimensions （L×W×H）6610×1830×2500mm ( 260.2×72.0×98.4 in )
Build Cylinder Size1（L×W×H）720×420×420 mm ( 28.3×16.5×16.5 in ) (not including build plate thickness)
Net WeightApprox. 5000 kg ( 11023.1 lb )
Laser TypeQuad Lasers, 4×500W
ScannerF theta lenses or dynamic focusing system
Scanning SpeedMax. 10.0 m/s ( 32.8 ft/s )

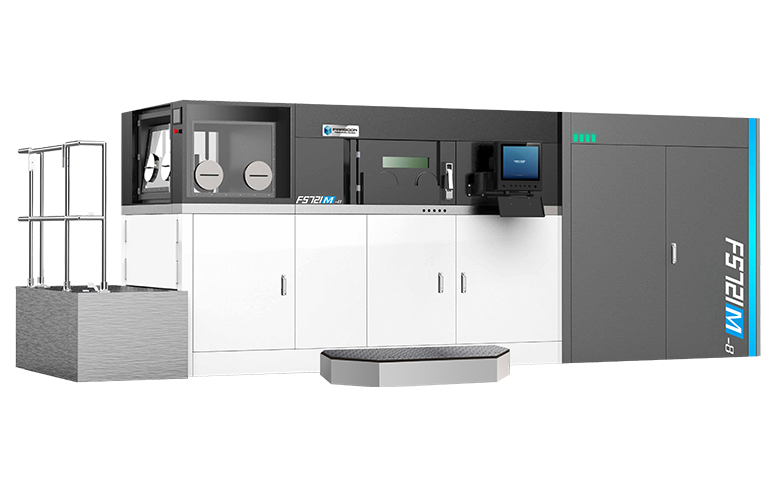

Technical DataFS721M-8
External Dimensions （L×W×H）6610×1830×2500mm ( 260.2×72.0×98.4 in )
Build Cylinder Size1（L×W×H）720×420×420 mm ( 28.3×16.5×16.5 in ) (not including build plate thickness)
Net WeightApprox. 5000 kg ( 11023.1 lb )
Laser TypeEight Lasers, 8×1000W
ScannerF theta lenses
Scanning SpeedMax. 10.0 m/s ( 32.8 ft/s )

1 The functional build volume depends on the parts/materials
