Nickel-based Alloys

Excellent oxidation resistance
High tensile, fatigue, creep and rupture strength
Good ductility
High corrosion resistance

REQUEST A QUOTE

Nickel-based Alloys for additive manufacturing

Featuring many advanced characters including high tensile strength, heat and corrosion resistant, the nickel-based alloys are well suited for a wide range of high-temperature applications in key components manufacturing for aerospace and energy sectors. The nickel alloy family now offering material solutions of HX, IN718 and IN625 alloys, and validated processing parameters optimized and tested on Farsoon metal systems.

HX

With the combination of outstanding resistance in oxidation environments and exceptional strength at elevated temperatures, HX is an ideal choice for highly-functional applications in aerospace, energy and chemistry industries.

General Properties

Density8.30 g/cm³

Mechanical Properties (As built)

Tensile Strength≥800 MPa
Yield Strength ≥600 MPa
Elongation after Fracture≥28 %
Vickers hardness≥260 HV5/15

Mechanical Properties (Heat treated)

Tensile Strength≥680 MPa
Yield Strength≥330 MPa
Elongation after Fracture≥30 %
Vickers hardnessn/a
DOWNLOAD TECHNICAL DATA

IN625

IN625 is a popular nickel-based superalloy used for its optimal strength, toughness, ease of fabrication, and outstanding stability under corrosive and high temperature environment. These characters are ideal for many industrial manufacturing in aerospace, energy, racing as well as marine sectors.

General Properties

Density8.40 g/cm³

Mechanical Properties (As built)

Tensile Strength≥950 MPa
Yield Strength ≥680 MPa
Elongation after Fracture≥33 %
Vickers hardness≥260 HV5/15

Mechanical Properties (Heat treated)

Tensile Strength≥850 MPa
Yield Strength≥620 MPa
Elongation at Break≥35 %
Vickers hardnessn/a
DOWNLOAD TECHNICAL DATA

IN718

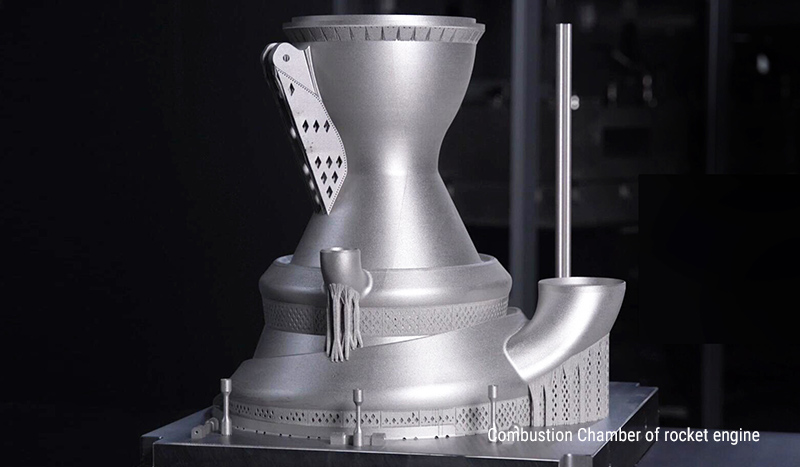

IN718 is an extremely high strength superalloy used for long term service at high temperature and corrosive environment. With outstanding tensile, fatigue, creep and rupture strength combined with excellent oxidation resistance under elevated temperature making it a popular choice for a number of critical industries and applications, including gas turbine components, jet engines, liquid fueled rocket motors and more.

General Properties

Density8.18 g/cm³

Mechanical Properties (As built)

Tensile Strength≥1060 MPa
Yield Strength ≥720 MPa
Elongation after Fracture≥21 %
Vickers hardness≥280 HV5/15

Mechanical Properties (Heat treated)

Tensile Strength≥1400 MPa
Yield Strength≥1120 MPa
Elongation after Fracture≥12 %
Vickers hardness≥410 HV5/15
DOWNLOAD TECHNICAL DATA
